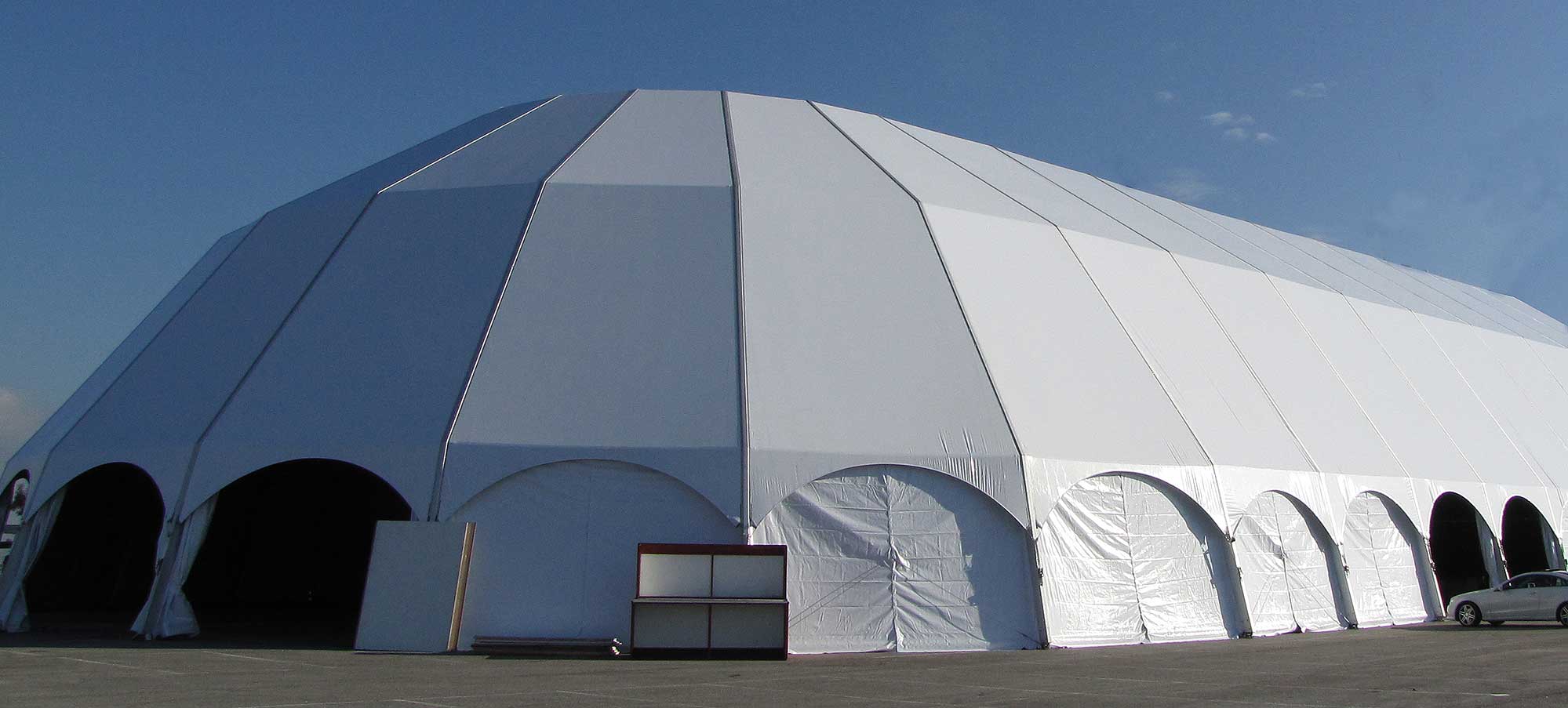

Igloo Structure


Where sound stages of a more temporary nature are required, and rapid cost-effective solutions are needed, we offer our ‘IGLOO’ building.

Our IGLOO’s impressive height at 16m, with clear span widths from 10m – 90m make this structure an incredibly versatile and appealing option for use as a temporary film and TV studio.

The Igloos can be constructed with cassette floor systems offering level floor subbases built over undulating ground condition with options for full or part scaffold where needed.

The IGLOO can be subdivided, and sound insulated to create numerous sound stages, production offices, workshops and more.

Igloo Sound Stage

Igloo credentials

  • Construction within days subject to scale of project/structure
  • Load capacity, 3 tonne per arch
  • High grade aluminium frame design
  • Internal heights achievable up to 16m based on our 30m wide structure
  • Standard 30m wide uninterrupted spans with further span options starting at 10m rising in 5m increments all the way up to our giant / superstructure spans of 90m.
  • Constructed in 5m bays with an option for limitless extension
  • Snow loading of 25kg / m2
  • Wind loading of 28m / second
  • Wall & roof finishes as standard in white opaque, crystal clear, two tone blackouts to help combat light & heat transmission
  • Sound insulation in the form of TABS to create a designated sound stage within the building credentials as below:
    • TABS to achieve 50 db/m2
  • Suspended cassette flooring to create level subfloor to overcome any location issues with options to part or fully scaffold if needed
  • Watertight connections to existing buildings
  • Roller shutter doors varying heights and widths subject to your needs
  • Pedestrian, automated, and glazed door units
  • Airlock entrance chamber for noise barrier control into sound stage
  • Ancillary services to include heating ventilation and cooling (HVAC), lighting and power, floor finishes, carpentry, partitioning, soundproofing, staging, scaffold, access, and egress ramps / steps

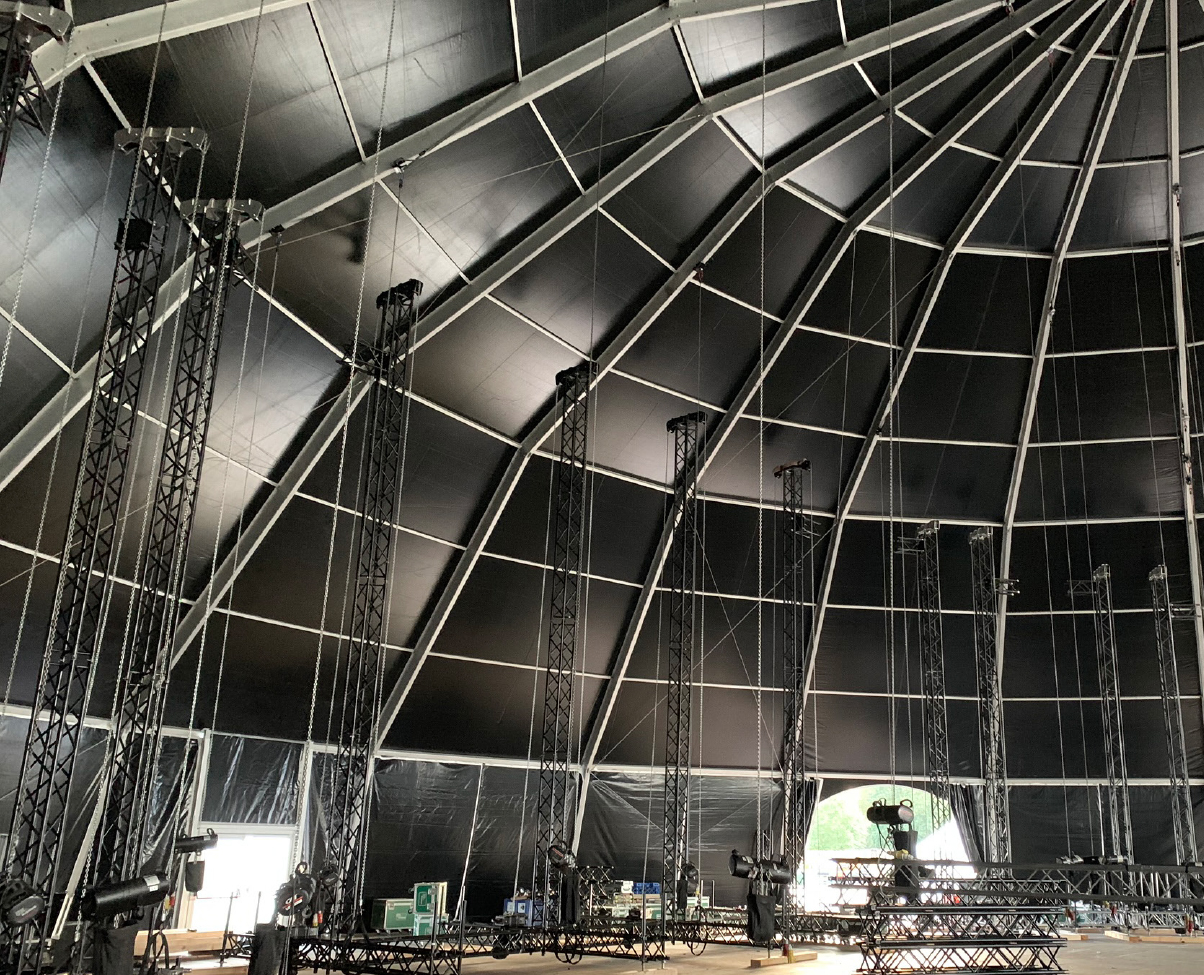

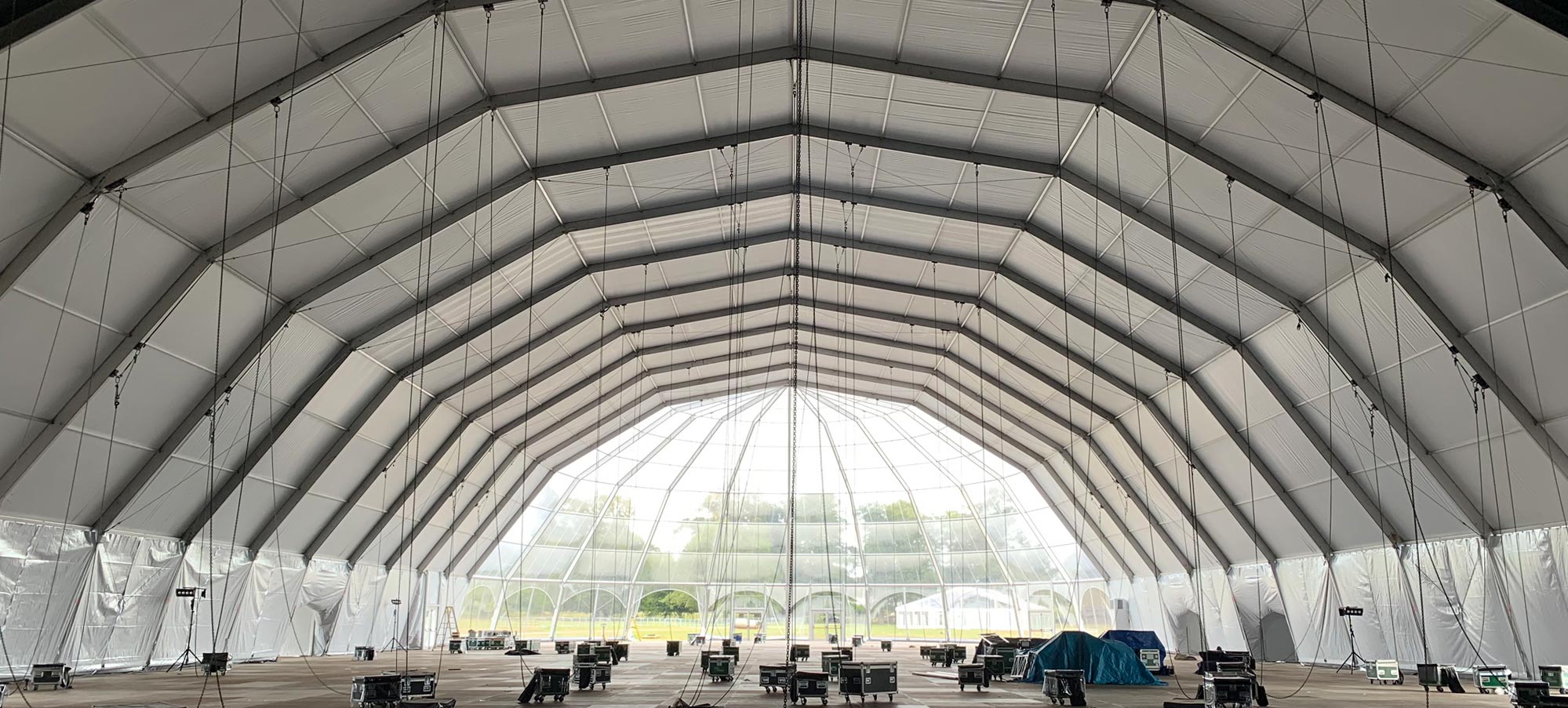

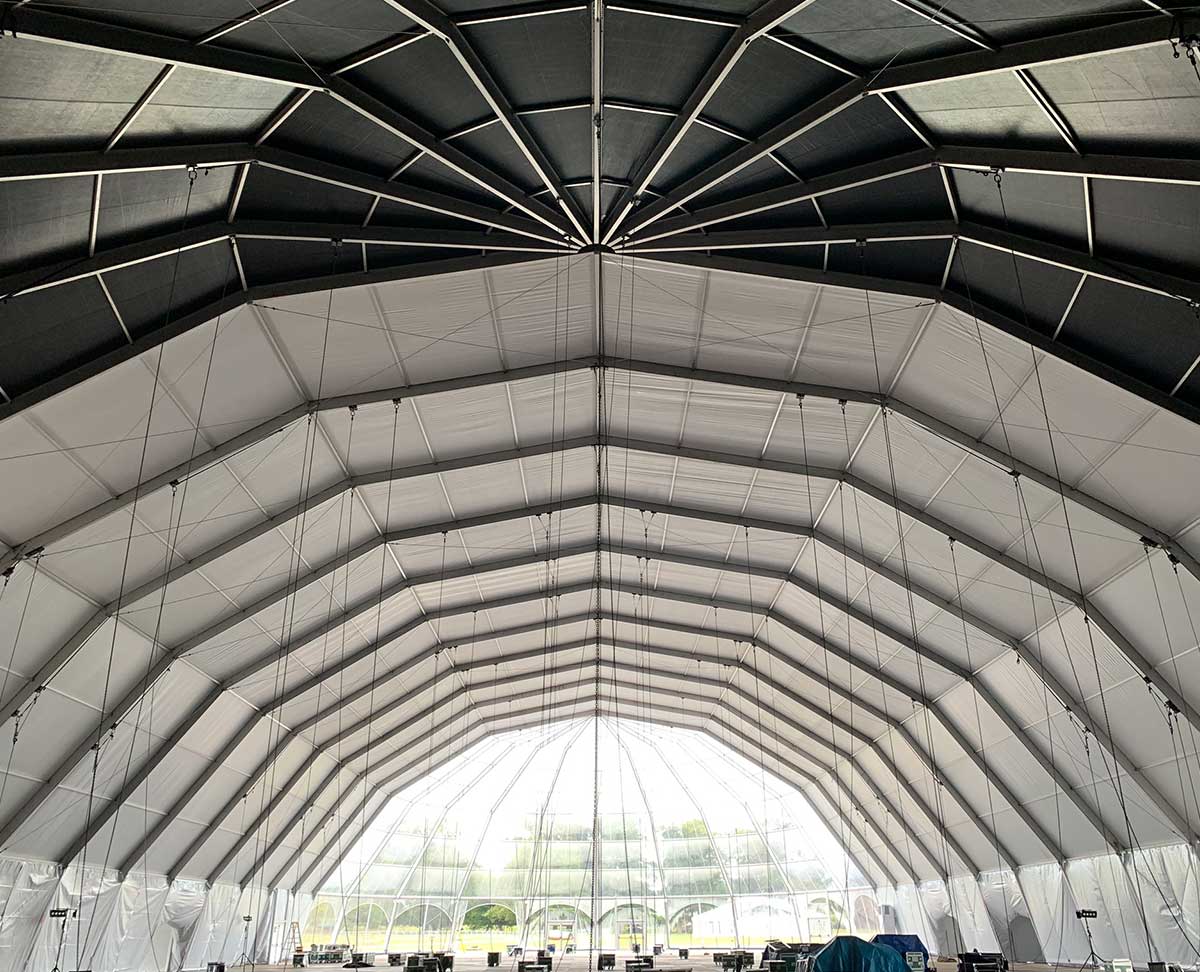

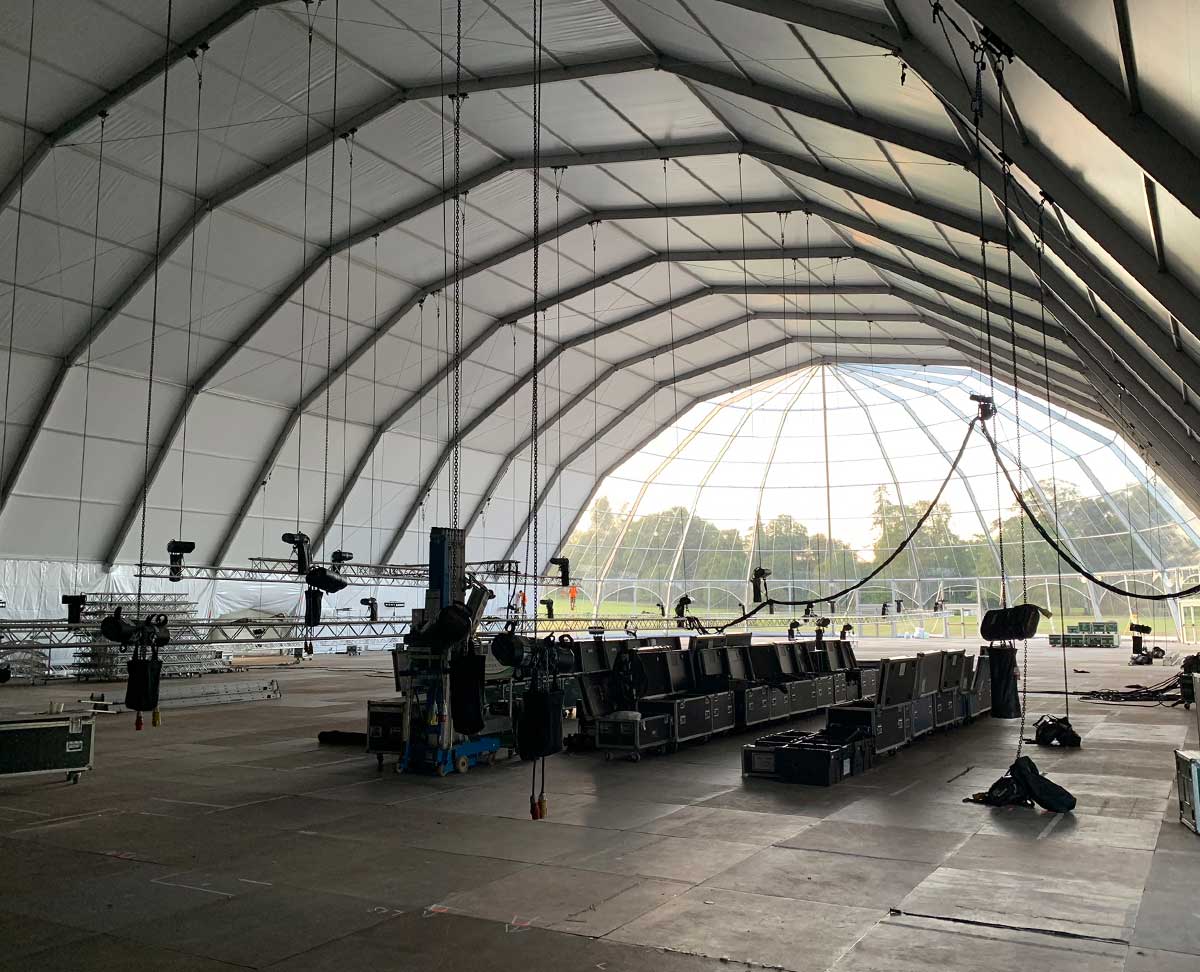

Igloo Structure Interior
Marquee Interior
